Tuesday, September 4, 2018

Enzo


究極のマルチヴォイス・シンセサイザーペダルの登場です♫

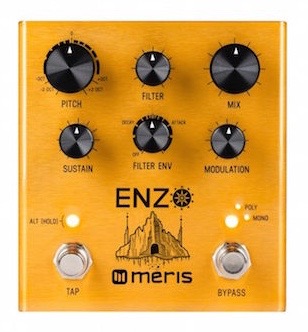

Meris Enzo Full Feature Demo


Main Features

• Colossal Multi-Voice Dual Oscillator Synth architecture with selectable waveforms
• Two Tap Delay with Time, Feedback, Modulation, + special two stage level control
• Three Synth modes: Poly Synth, Mono Synth, and Arpeggiated Synth
• Two Distinct Tunable Envelope Types: Triggered and Envelope Follower
• Tunable Portamento Time for smooth transitions between synth notes & pitch shifts
• Sustain control for extending ur volume envelope all the way to endless synth hold
• Adjustable Compressor with Threshold and Mix for your input signal (Dry mode)
• Custom 6 mode filter with frequency, bandwidth (resonance), and envelope
• Wide ranging Ring Modulation with ability to assign envelope control
• Digitally controlled Analog mix control

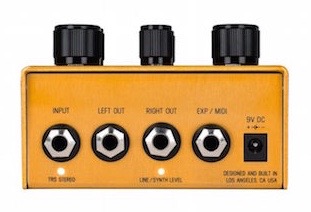

• Stereo input and output
• Switchable input / output headroom level for Guitar or Synth / Line level
• Expression pedal control over all parameters simultaneously
• Presets available via external 4-Preset switch or MIDI
• MIDI in/out over TRS via the EXP jack (presets, automation, beat clock)
• Premium analog signal path and 24-bit AD/DA w/32-Bit floating-point DSP
• Powered by supplied country-specific 9V PSU


Technical Specifications

AD/DA: Premium quality 24 Bit A/D and D/A
DSP bitrate: 32-Bit floating-point DSP hardware
Signal path: Hi-end low-noise Analog signal path throughout
Wet/Dry signal handling: Wet/Dry signal mix occurs in the Analog domain
Input circuit: Analog Devices JFET input circuitry
Bypass mode: Selectable True Bypass (Relay) or Analog Buffered Bypass
Colour / Finish: Translucent coat of gold over brushed aluminium
S/N ratio: -115 dB Signal to Noise Ratio (typical)
Power requirements: 9V DC (- centre)
Current draw: 150 mA
